Zenith® Fenestrated

AAA Endovascular Graft
Abdominal Aneurysms

DEVICE SPECIFICATIONS ESSENTIAL PRESCRIBING INFORMATION PROCEDURAL ACCESSORIES PLANNING & SIZING SHEET

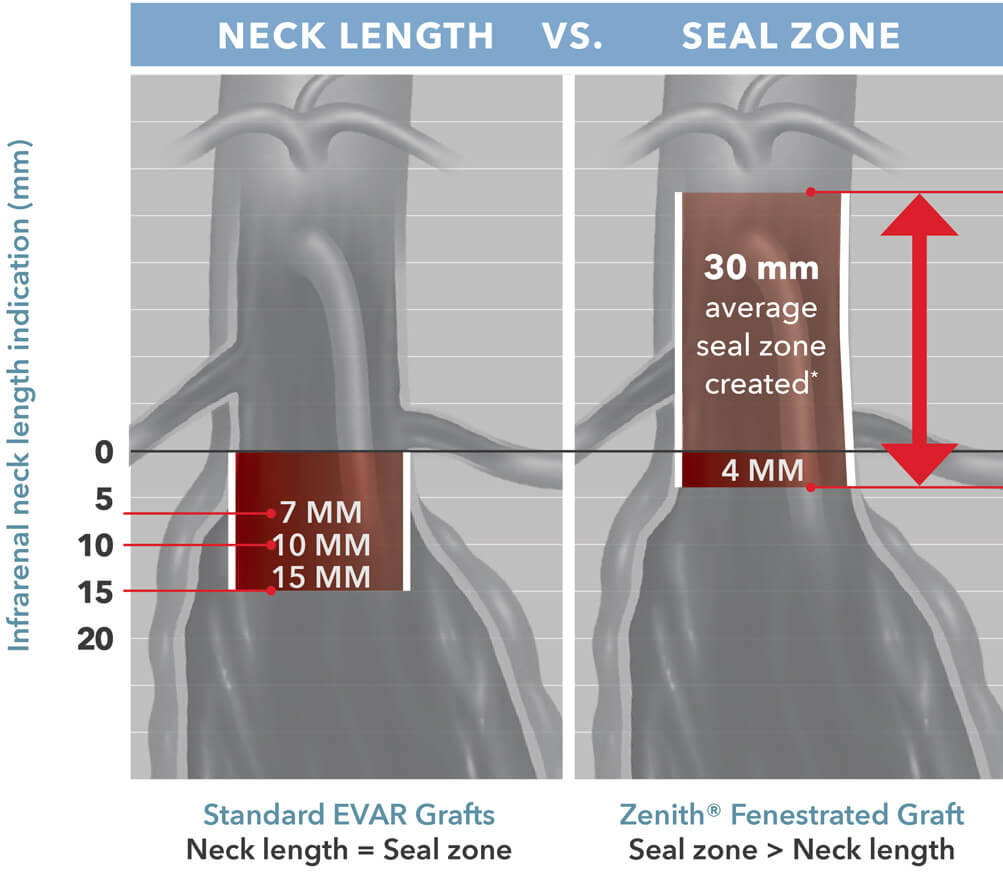

Maximizes Seal

The only device that extends seal beyond infrarenal neck length.

*Based on Cook Research Incorporated internal analysis of patients treated in the Zenith Fenestrated pivotal and continued access studies.

Backed by 5-Year Data*

Rigorously tested for aneurysms with infrarenal seal zones ≥ 4 mm to < 15 mm.

10,000+ devices implanted globally

*Source: Zenith Fenestrated 2019 Clinical Update

Patient Specific

Accommodate each patient’s unique anatomy for a personalized fit.

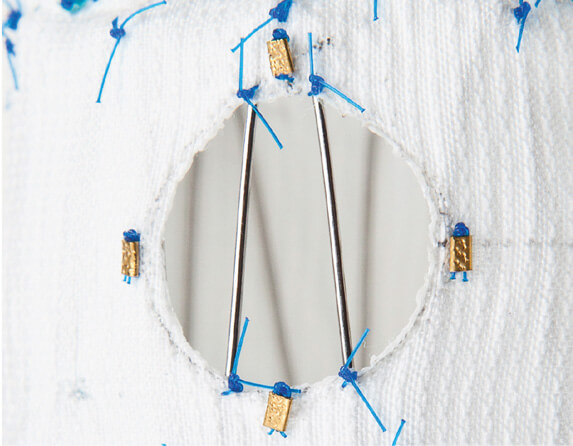

Large Fenestration

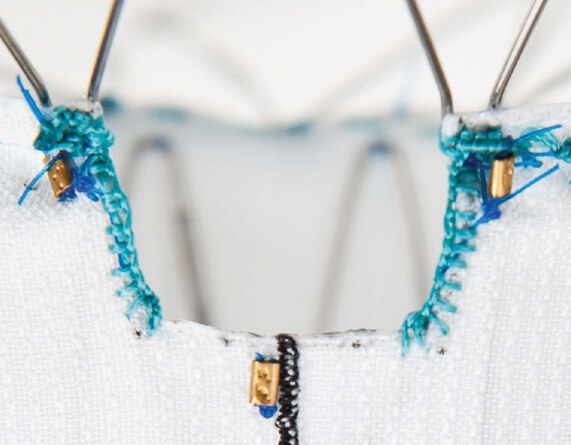

Scallop

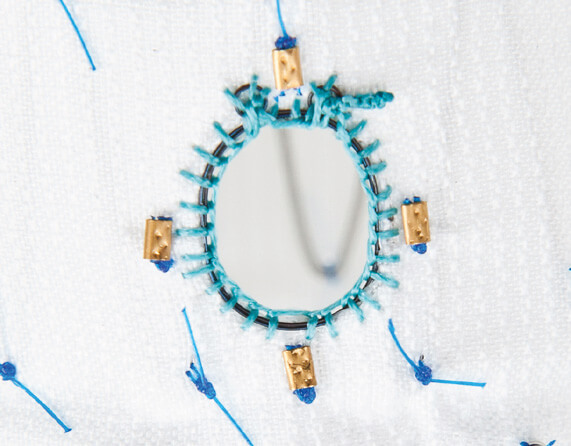

Small Fenestration

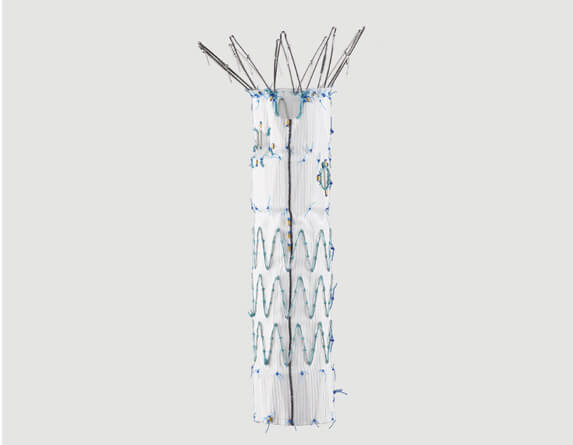

Proximal Body
Diameters 24-36 mm

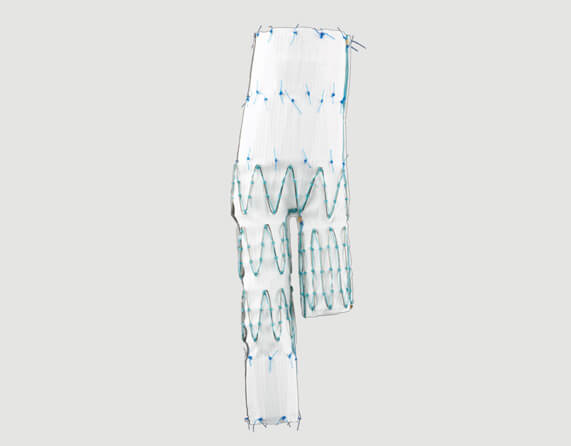

Distal Bifurcated
Body Grafts

Spiral-Z® Iliac Leg
Diameters 9-24 mm

Andres Schanzer, MD, is a paid consultant of Cook Medical.

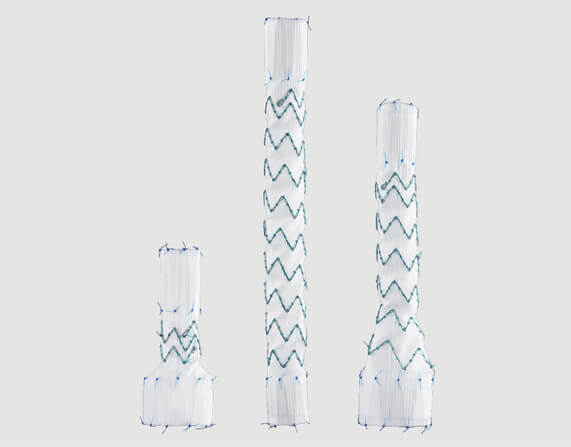

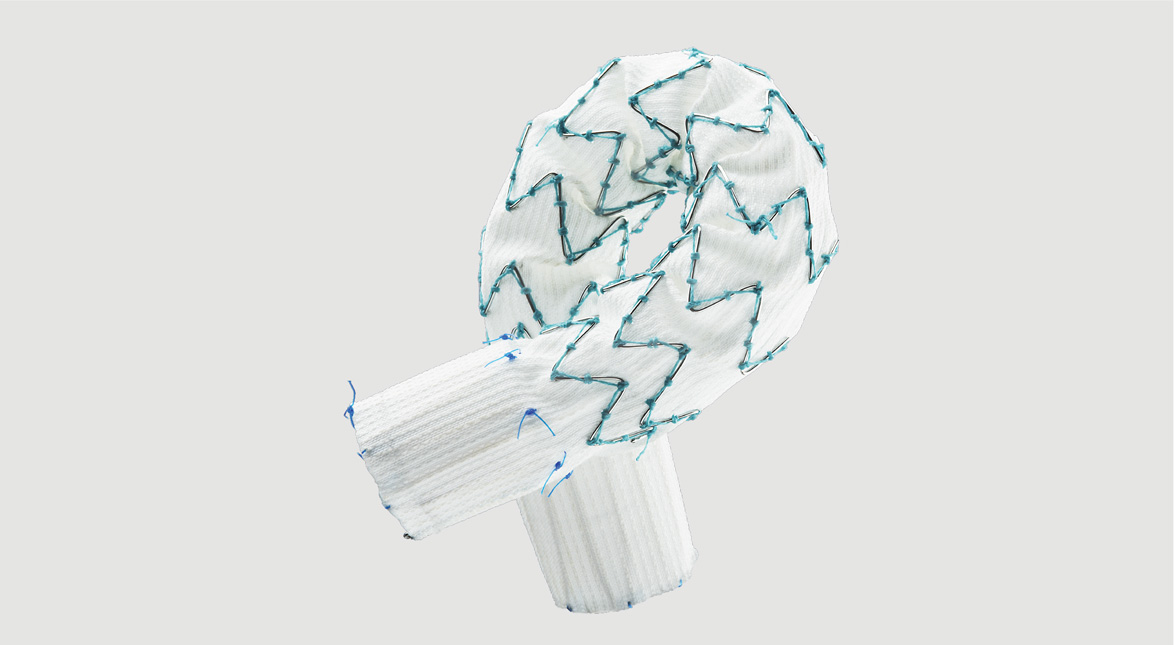

Zenith® Spiral-Z®: Enhanced Graft Flexibility

Designed to maintain patency and seal in a range of iliac anatomy.

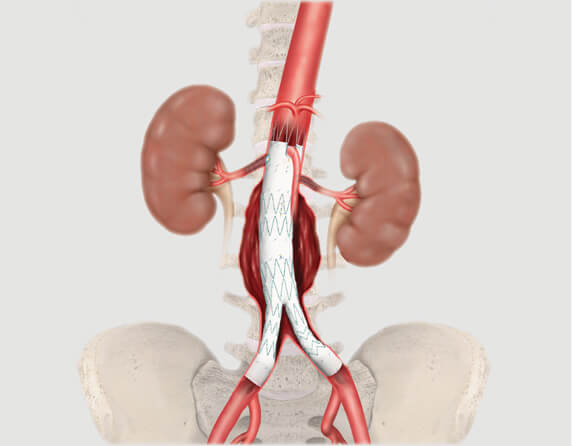

Zenith® Spiral-Z® AAA Iliac Leg Graft

Kink Resistant

10,000+ devices implanted globally

*Source: Zenith Fenestrated 2019 Clinical Update

Patient Scans

Zenith® Fenestrated

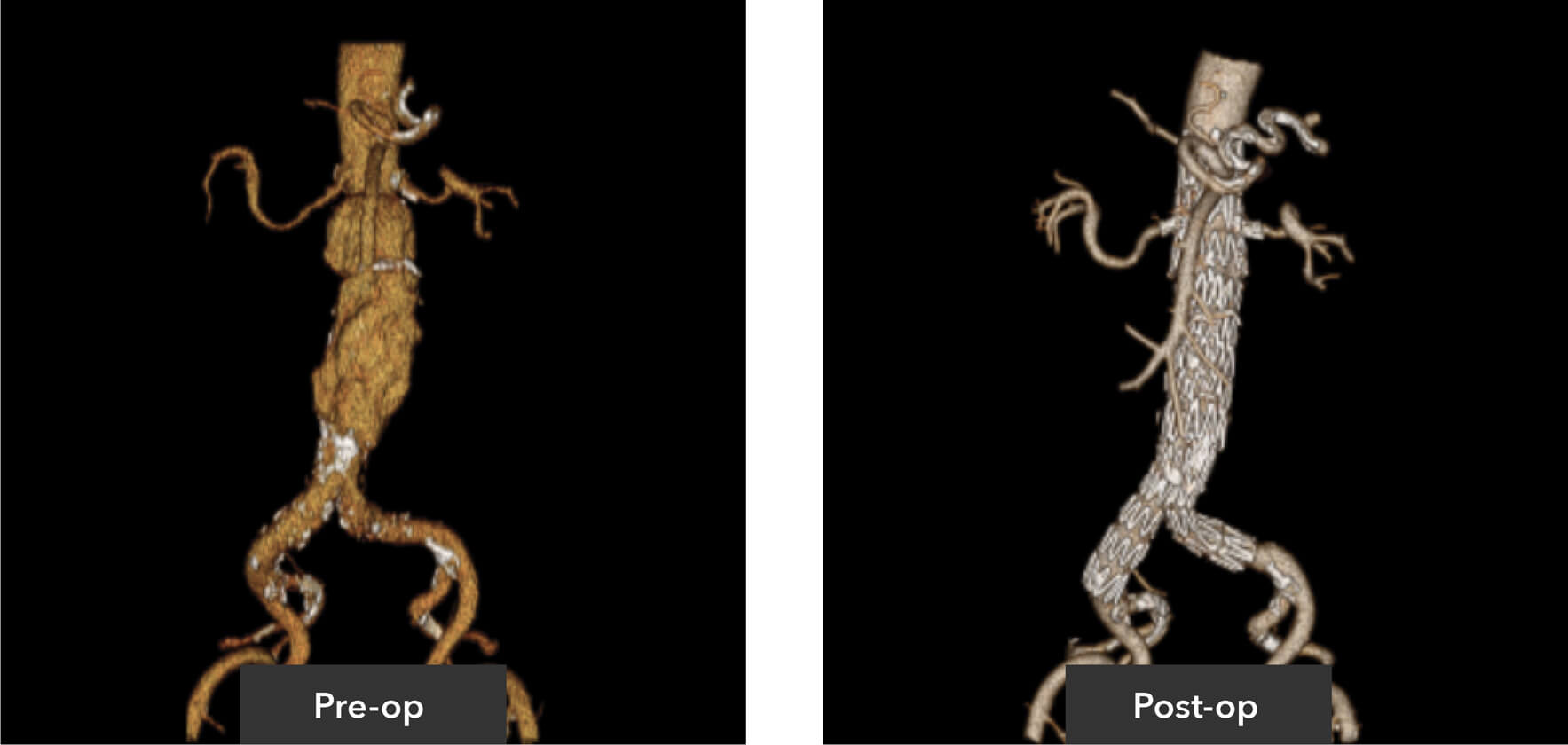

PATIENT 1

Zenith Fenestrated with Zenith® Spiral-Z® Iliac Legs

Pre-op/post-op TeraRecon imaging.

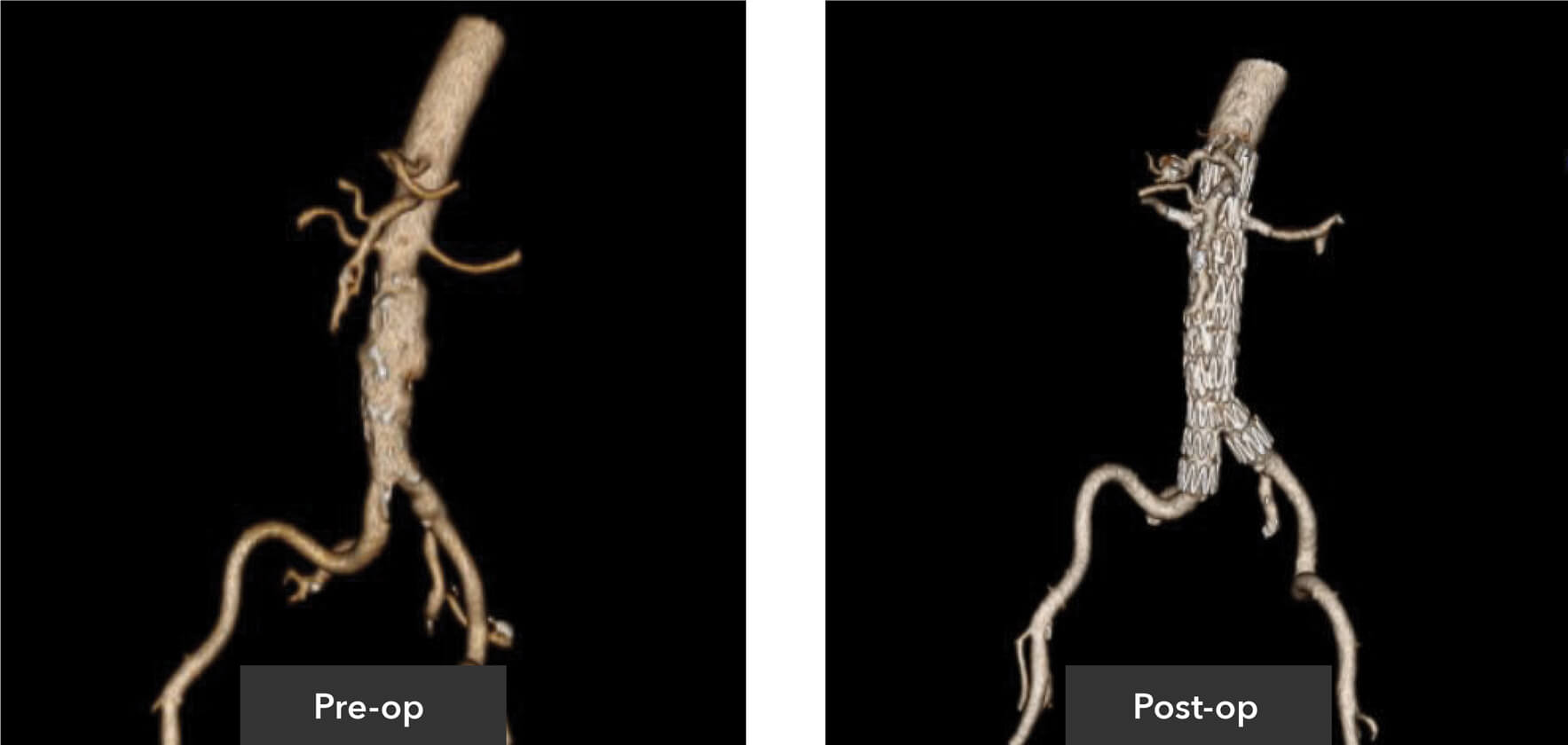

PATIENT 2

Zenith Fenestrated with Zenith® Spiral-Z® Iliac Legs

Pre-op/post-op TeraRecon imaging.

Device Specifications

PROXIMAL COMPONENT IFU & ORDERING INFORMATION DISTAL BIFURCATED BODY GRAFT IFU & ORDERING INFORMATION ZENITH® SPIRAL-Z® - ILIAC LEGS IFU & ORDERING INFORMATION

Device Specifications

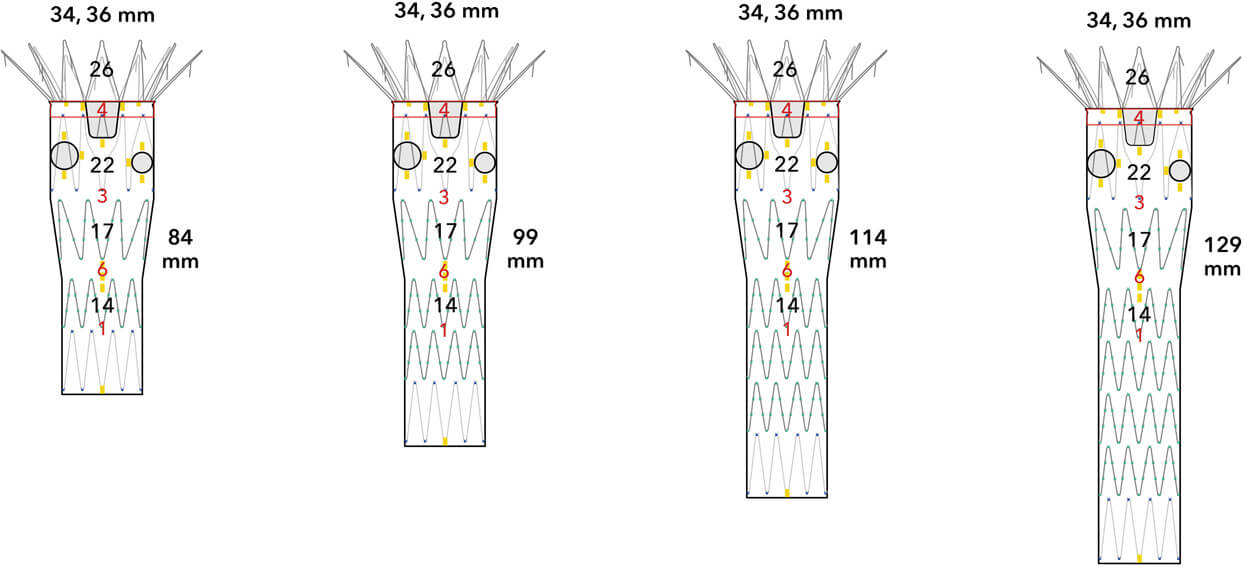

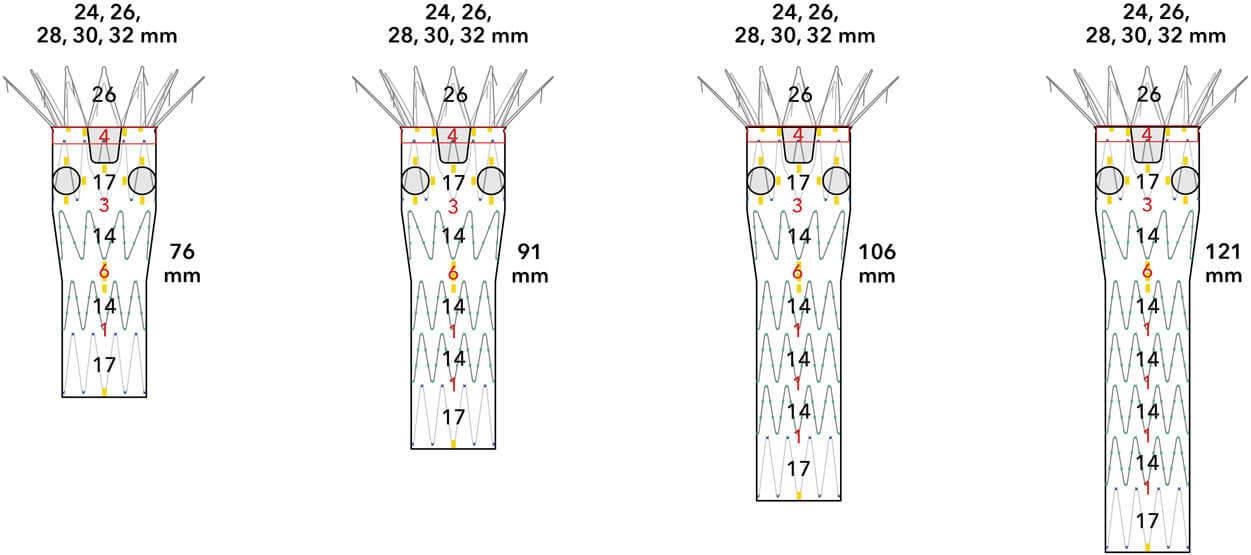

PROXIMAL COMPONENTS

One Internal Proximal Stent

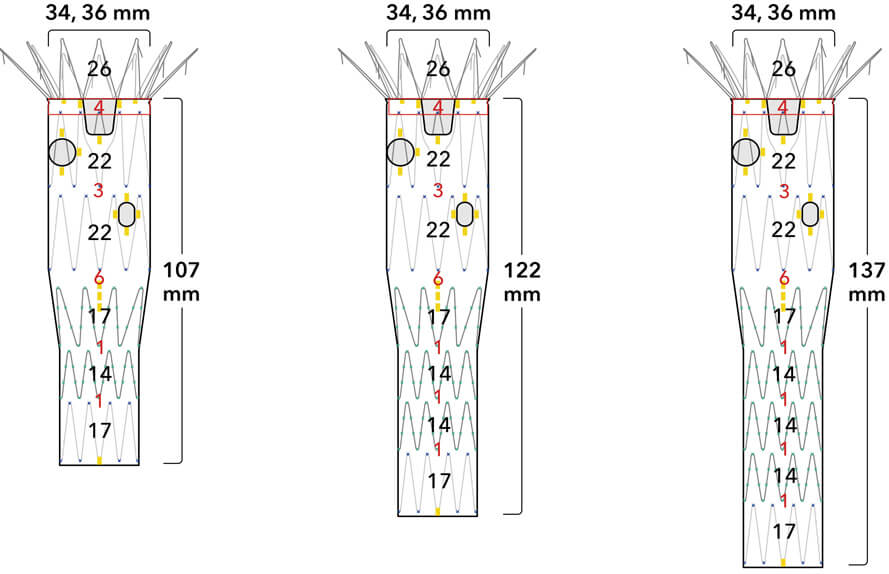

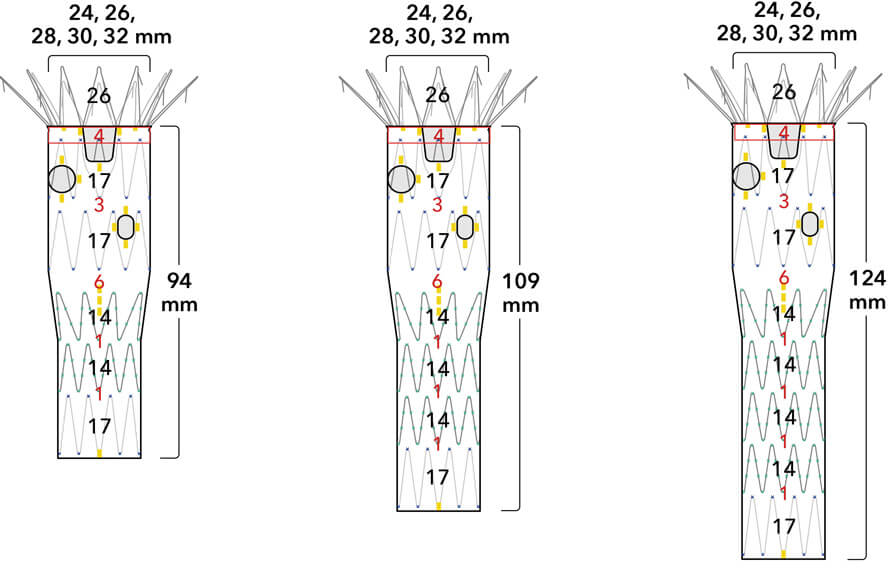

Two Internal Proximal Stents

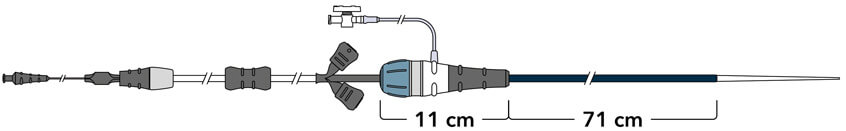

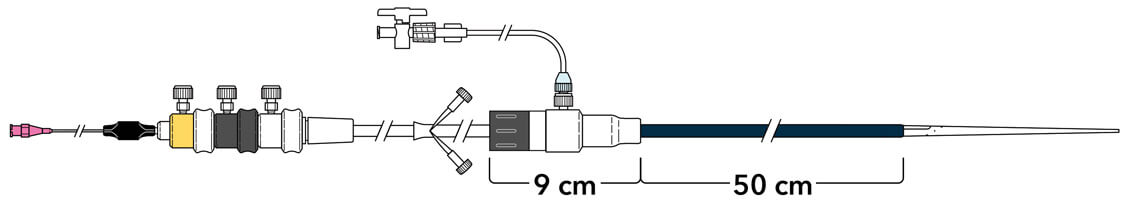

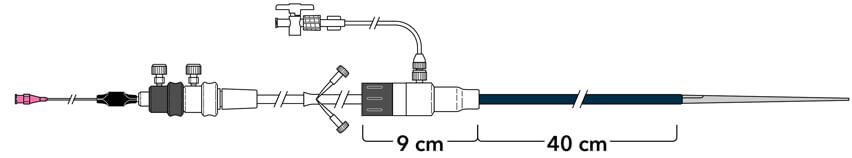

H&L-B One-Shot® Introduction System for Proximal Body Grafts

22-34 mm grafts: 20 Fr (6.7 mm) ID/7.7 mm OD
36 mm grafts: 22 Fr (7.3 mm) ID/8.5 mm OD

Note: All measurements are in millimeters. The black numbers on the illustrations indicate stent lengths.

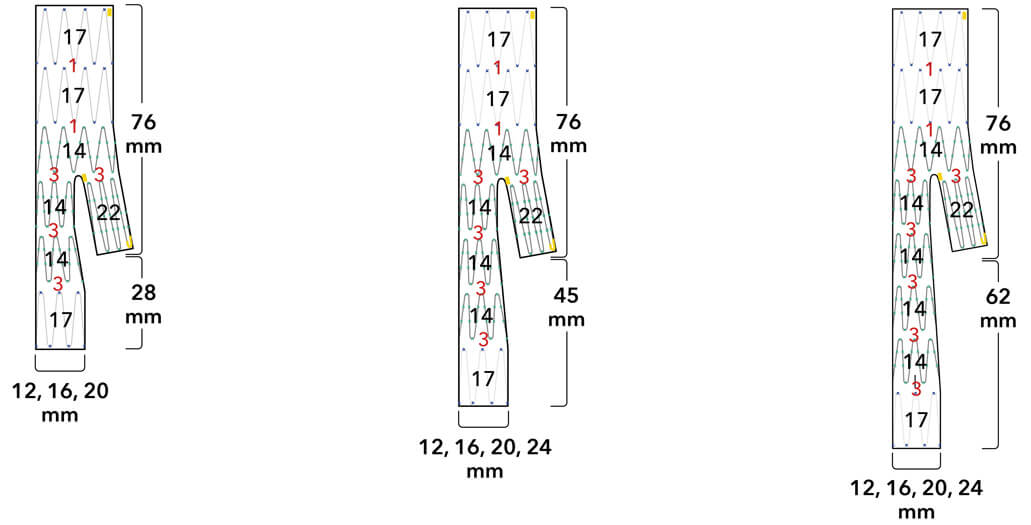

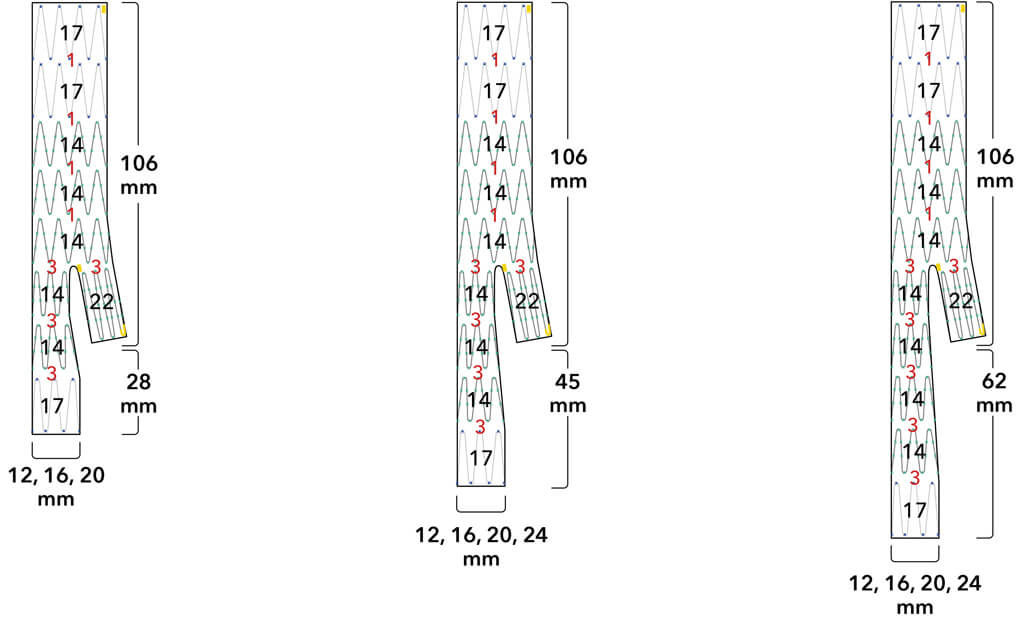

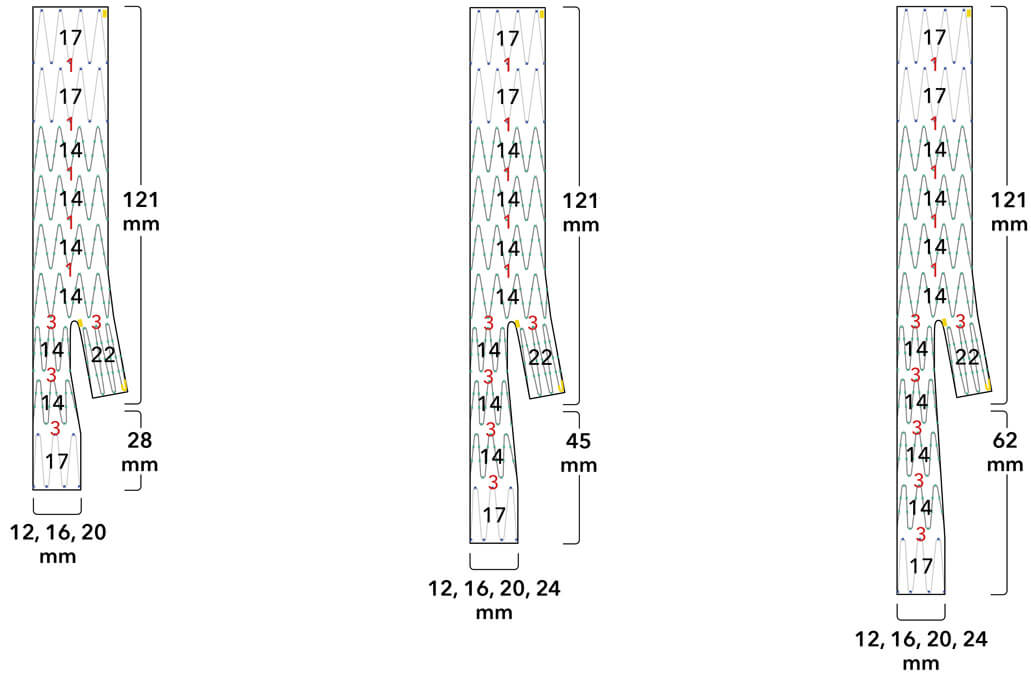

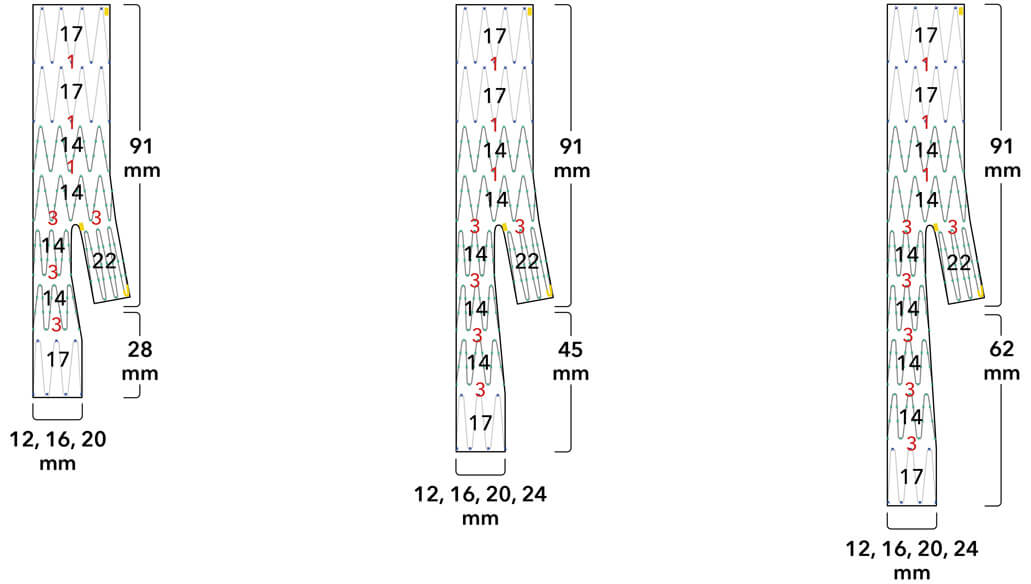

DISTAL BIFURCATED BODY GRAFTS

H&L-B One-Shot® Introduction System for Distal Body Grafts

20 Fr (6.7 mm) ID/7.7 mm OD

Note: All measurements are in millimeters. The black numbers on the illustrations indicate stent lengths.

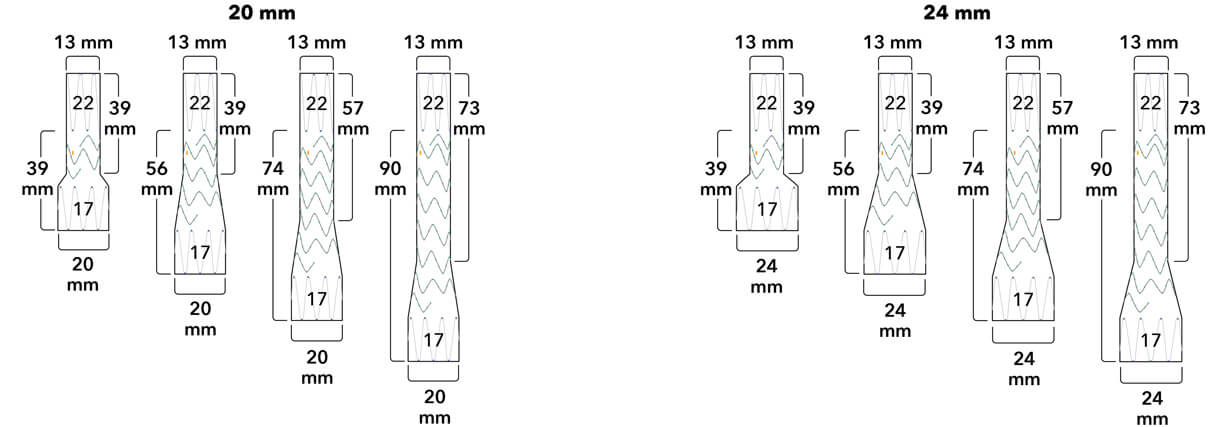

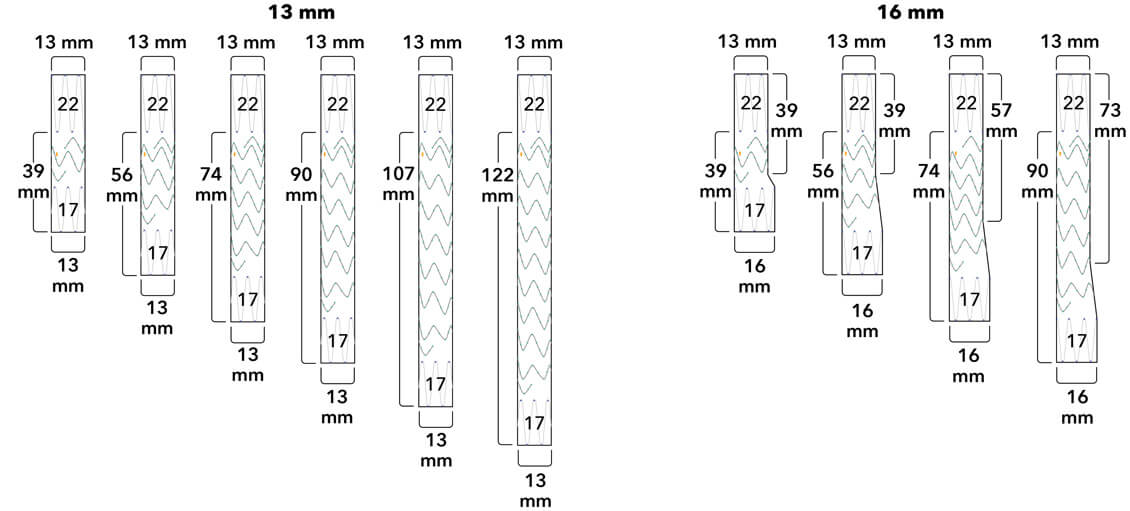

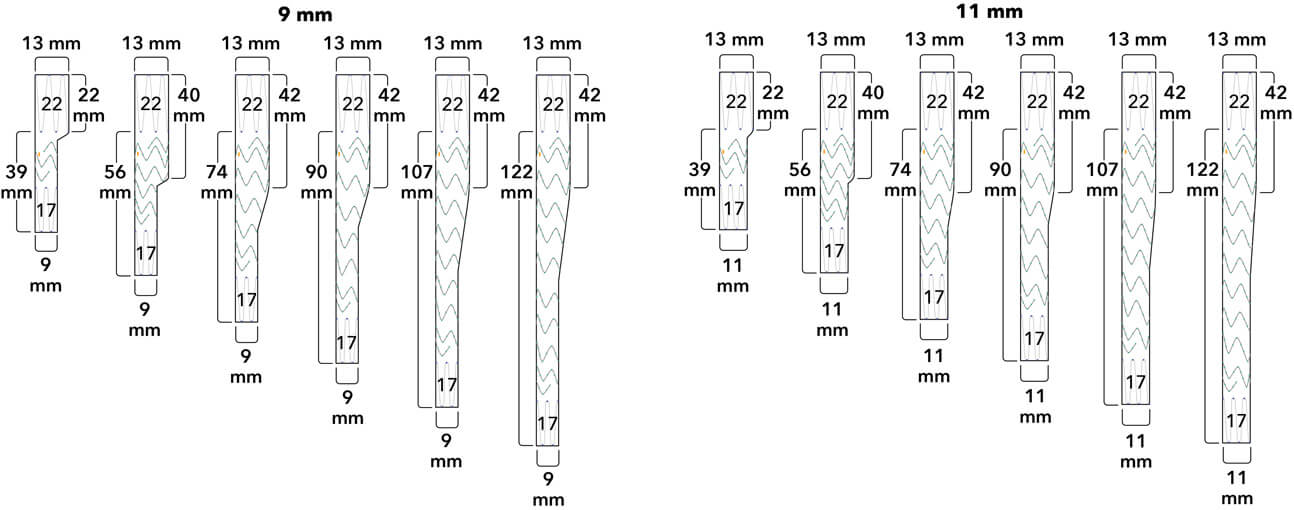

ZENITH® SPIRAL-Z® - ILIAC LEGS

Essential Prescribing Information

More Information

Other Disease-Specific Solutions

Product Zenith^® Alpha

Product Zenith^® Dissection

Product Zenith Flex^®

Not all products shown on this website may be approved in all regulatory jurisdictions.
Consult with your local Cook representative, distribution company or customer support center for details.
